1. Descriptions:
Meat tumbler machine can make uniform absorption pickled meat, can improve the junction of meat emphatically and the elasticity of the product;Can improve the taste of the product and the effect of cross section;Can enhance water retention, increase the rate of production;Can improve the internal structure of products, energy efficient.The machine adopt stainless steel, compact structure, and on both ends of the roller adopts spin type cap seal structure, the biggest increase the break the space inside the cylinder, tumbling, the effect of the product evenly, low noise, reliable performance, easy operation, efficiency is higher.
2. Working Principle:
Meat tumbler machine is using the principle of physical impact, let the meat turning up and down inside the cylinder, collisions, throw, to massage, curing effect.Hydraulic roll kneading machine adopts frequency conversion step-less speed regulation, the RPM speed range of 3 to 12 (can choose 1-4 RPM speed function).Start smoothly, reduce the impact of the machine is started, prolong the service life of equipment.Special configuration material vacuum suction.(optional) PLC and touch-screen control the total working time is most can be classified into six process cycle, each process is divided into two steps, each step separately set time, rotational speed, vacuum, steering.Satisfy the requirement of the diversity of products processing.High standards of hygiene design.The whole machine adopts SUS304 stainless steel material quality;Tumbling barrel internal fine polishing, no health dead Angle, discharge position can be drained.Optional "V" and "monolithic" type blade, and different roll kneading, adapt to different products.
3. Classification:
Meat tumbler machine classification can be divided into;Vacuum roll kneading machine, self-priming vacuum roll kneading machine, automatic vacuum roll kneading machine, the eccentric type vacuum roll kneading machine, vacuum roll kneading machine, such as variable frequency vacuum roll kneading machine type.
Other similar types of equipment are: vacuum curing machine, pickling tank, salted barrels and other equipment.

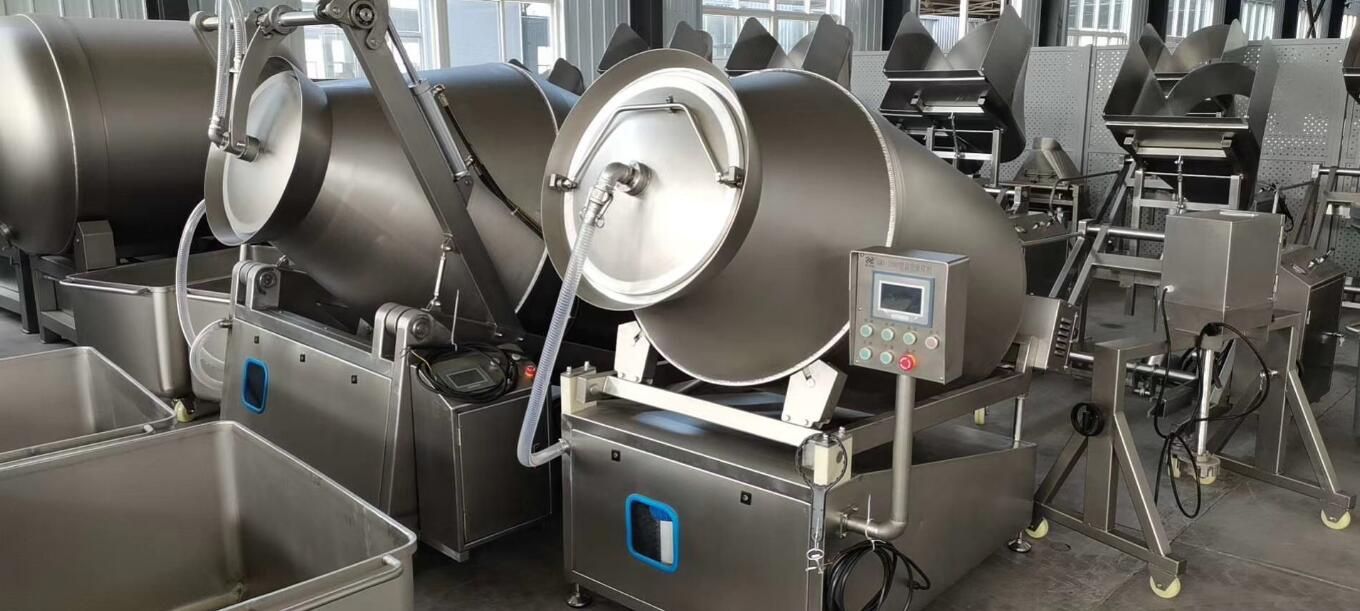

Frequency conversion Meat tumbler machine
Variable frequency vacuum roll kneading machine equipped with frequency converter, increase speed adjustment, change the original single fixed revolution, make the roll kneading revolution may adjust according to the craft.

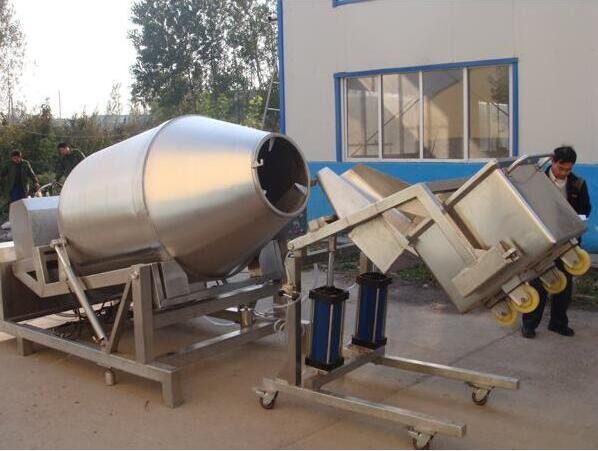

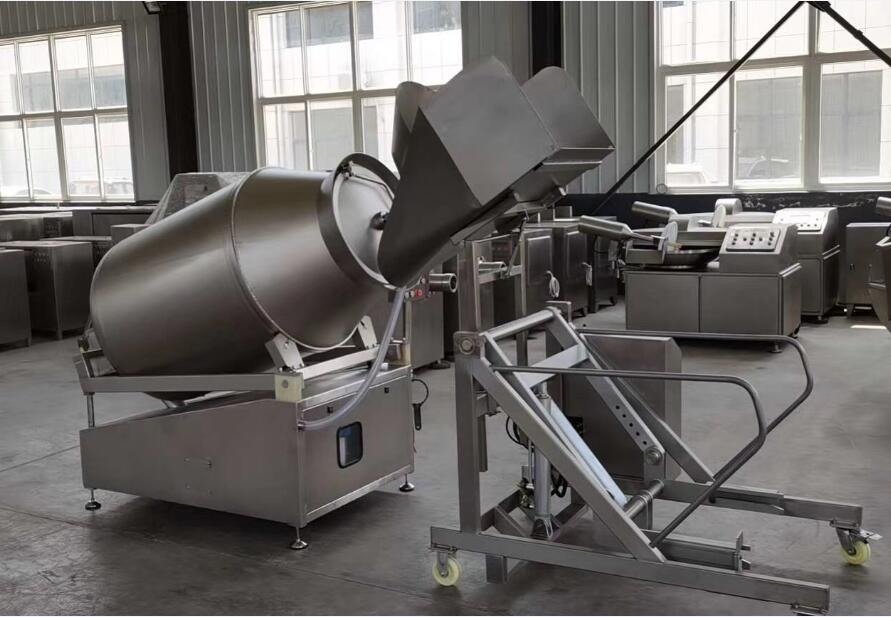

Automatic hydraulic vacuum roll kneading machine, automatic feeding, automatic open, automatic discharging).
Automatic hydraulic vacuum roll kneading machine, PLC control, realize the automation of production process.
4. Technical data sheet:
Model |
Capacity (kg) |
Power (kw) |
Voltage (v) |
Rolling speed (rpm) |
Dimension (mm) |
Weight (kg) |
BG-200 |
50-100 |
2.25 |
220/380 |
6-8 |
1500*1000*1500 |
165 |
BG-300 |
225-300 |
2.25 |
220/380 |
6-8 |
1700*1000*1500 |
200 |
BG-500 |
375-500 |
2.95 |
220/380 |
6-8 |
2000*1000*1500 |
240 |
BG-600 |
450-600 |
2.95 |
220/380 |
6-8 |
2100*1000*1500 |
260 |
BG-800 |
600-800 |
3 |
220/380 |
6-8 |
2300*1000*1500 |
400 |
BG-1000 |
800-1000 |
4.5 |
220/380 |
Variable speed |
2400*1100*1680 |
480 |
BG-1200 |
1000-1200 |
5.5 |
220/380 |
Variable speed |
2450*1150*1780 |
550 |
BG-1500 |
1300-1400 |
5.5 |
220/380 |
Variable speed |
2500*1350*1800 |
600 |
BG-2000 |
1700-2000 |
7.5 |
220/380 |
Variable speed |
2650*1450*1850 |
850 |
BG-2800 |
2500-2800 |
10 |
220/380 |
Variable speed |
2760*1450*2100 |
1200 |
BG-3600 |
3400-3600 |
11 |
220/380 |
Variable speed |
2850*1550*2220 |
1500 |
BG-4800 |
4500-4800 |
15 |
220/380 |
Variable speed |
4000*1650*1950 |
2100 |
