Product name : Automatic meat burger forming machine
Product No. : 2021318104142
Price : Automatic meat burger forming machine
Details:

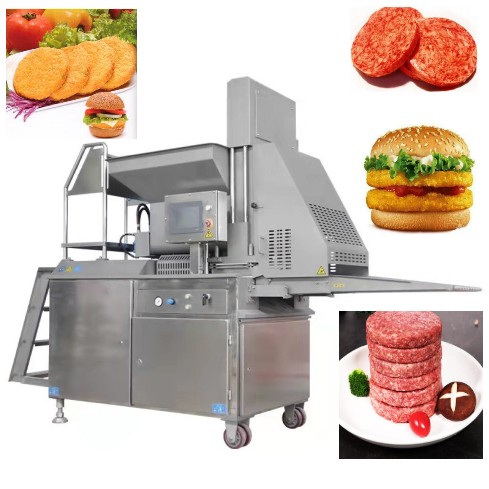

Automatic meat burger forming machine
Meat hamburger forming machine
Hamburger patty forming machine
Hamburger forming machine
Hamburger maker
Descriptions:
The automatic meat burger forming machine integrates mechanical, hydraulic, pneumatic and other action functions, and is controlled by PLC, with simple operation and maintenance, reliable performance; fully automatic program control, thereby effectively reducing production costs and effectively ensuring product quality.
Automatic meat burger forming machine
The automatic meat burger forming machine can automatically complete the filling, molding, output and other processes; it is suitable for a wide range of materials; the opposite twin-screw feeding reduces the damage to the material structure; it has high output and stable performance. The forming machine can be connected with different coating equipment such as sizing machine, powder coating machine, crumb coating machine, etc., and can produce various products with different appearances, different tastes and flavors. Product template replacement is simple and fast, with abundant template specifications and shapes.
Automatic meat burger forming machine
The automatic meat burger forming machine is suitable for forming materials such as poultry meat, fish, shrimp, potatoes and vegetables. It is suitable for the molding of meat emulsion, block and granular raw materials. By replacing the template and punch, products in the shape of hamburger cakes, chicken nuggets, onion rings, etc. can be produced.
Automatic meat burger forming machine
Technical Specification:
Automatic meat burger forming machine
Electrical Parts:
Using German SIMENS touch screen and PLC, Chinese and English operation interface, parameter adjustment is simple, easy to operate, the program is equipped with a fault alarm system, which is convenient for equipment performance testing. The protective cover is equipped with a safety protection switch and adopts the German SCHMERSRL brand.
Automatic meat burger forming machine
Hydraulic and cooling Parts:
Adopt American VICKERS solenoid valve and hydraulic oil motor brand, reliable performance. There are two options for hydraulic cooling: water cooling and air cooling.
Automatic meat burger forming machine
Pneumatic Part:
All pneumatic parts are German FESTO brand (including cylinders, joints, air pipes, etc.)
Automatic meat burger forming machine
Punch template Part:
The punch is made of food-grade PE material, and the template is processed and assembled with European imported POM material, which effectively guarantees the service life of the template. The template specifications are customized according to customer requirements.
Automatic meat burger forming machine
Brief introduction of equipment composition:
1. All equipment is processed and assembled with high-quality 304 stainless steel and food-grade non-metallic materials.
2. The company has advanced numerical control processing equipment, which ensures the accuracy and interchangeability of various mechanical parts and reduces after-sales maintenance costs.
3. Electrical parts adopt Siemens, Schneider, Weidmüller and other domestic and foreign first-line brands to ensure that the control part is durable and has a low failure rate.
4. Using 304B mesh belt, which is hygienic and safe, good ductility, and easy to clean.
5. The motor adopts domestic and foreign first-line brands, and the waterproof grade is IP55 and above, so as to ensure the equipment and personal safety.
6. Humanized electrical operation panel, Chinese and English interface, easy to learn.
7. Excellent performance, safety and reliability, the whole machine meets HACCP requirements and export standards.
Automatic meat burger forming machine
Meat hamburger forming machine
Hamburger patty forming machine
Hamburger forming machine
Hamburger maker
Descriptions:
The automatic meat burger forming machine integrates mechanical, hydraulic, pneumatic and other action functions, and is controlled by PLC, with simple operation and maintenance, reliable performance; fully automatic program control, thereby effectively reducing production costs and effectively ensuring product quality.
Automatic meat burger forming machine
The automatic meat burger forming machine can automatically complete the filling, molding, output and other processes; it is suitable for a wide range of materials; the opposite twin-screw feeding reduces the damage to the material structure; it has high output and stable performance. The forming machine can be connected with different coating equipment such as sizing machine, powder coating machine, crumb coating machine, etc., and can produce various products with different appearances, different tastes and flavors. Product template replacement is simple and fast, with abundant template specifications and shapes.
Automatic meat burger forming machine
The automatic meat burger forming machine is suitable for forming materials such as poultry meat, fish, shrimp, potatoes and vegetables. It is suitable for the molding of meat emulsion, block and granular raw materials. By replacing the template and punch, products in the shape of hamburger cakes, chicken nuggets, onion rings, etc. can be produced.
Automatic meat burger forming machine
Technical Specification:
| Model | BG-400 | BG-600 |
| Belt width | 400mm | 600mm |
| Air/water pressure | 62Bar/2Bar | 62Bar/2Bar |
| Power | 11.12kw | 15.12kw |
| Capacity | 500-1000kg/h | 1500-2000kg/h |
| Strokes | 15-55 strokes per minute | 15-60 strokes per minute |
| Product thickness | 6~25mm | 6~40mm |
| Weight error | ≤1% | ≤1% |
| Product diameter max | 135mm | 150mm |
| Stowing pressure | 3~15Mpa(adjustable) | 3~15Mpa(adjustable) |
| Mesh belt speed | 3-15m/min | 3-15m/min |
| Input and output height: | 950±50mm | 1050±50mm |
| Dimensions | 2820x850x2150mm | 3200x1200x2450mm |
Electrical Parts:
Using German SIMENS touch screen and PLC, Chinese and English operation interface, parameter adjustment is simple, easy to operate, the program is equipped with a fault alarm system, which is convenient for equipment performance testing. The protective cover is equipped with a safety protection switch and adopts the German SCHMERSRL brand.
Automatic meat burger forming machine
Hydraulic and cooling Parts:
Adopt American VICKERS solenoid valve and hydraulic oil motor brand, reliable performance. There are two options for hydraulic cooling: water cooling and air cooling.
Automatic meat burger forming machine
Pneumatic Part:
All pneumatic parts are German FESTO brand (including cylinders, joints, air pipes, etc.)
Automatic meat burger forming machine
Punch template Part:
The punch is made of food-grade PE material, and the template is processed and assembled with European imported POM material, which effectively guarantees the service life of the template. The template specifications are customized according to customer requirements.
Automatic meat burger forming machine
Brief introduction of equipment composition:
1. All equipment is processed and assembled with high-quality 304 stainless steel and food-grade non-metallic materials.
2. The company has advanced numerical control processing equipment, which ensures the accuracy and interchangeability of various mechanical parts and reduces after-sales maintenance costs.
3. Electrical parts adopt Siemens, Schneider, Weidmüller and other domestic and foreign first-line brands to ensure that the control part is durable and has a low failure rate.
4. Using 304B mesh belt, which is hygienic and safe, good ductility, and easy to clean.
5. The motor adopts domestic and foreign first-line brands, and the waterproof grade is IP55 and above, so as to ensure the equipment and personal safety.
6. Humanized electrical operation panel, Chinese and English interface, easy to learn.
7. Excellent performance, safety and reliability, the whole machine meets HACCP requirements and export standards.
Automatic meat burger forming machine
